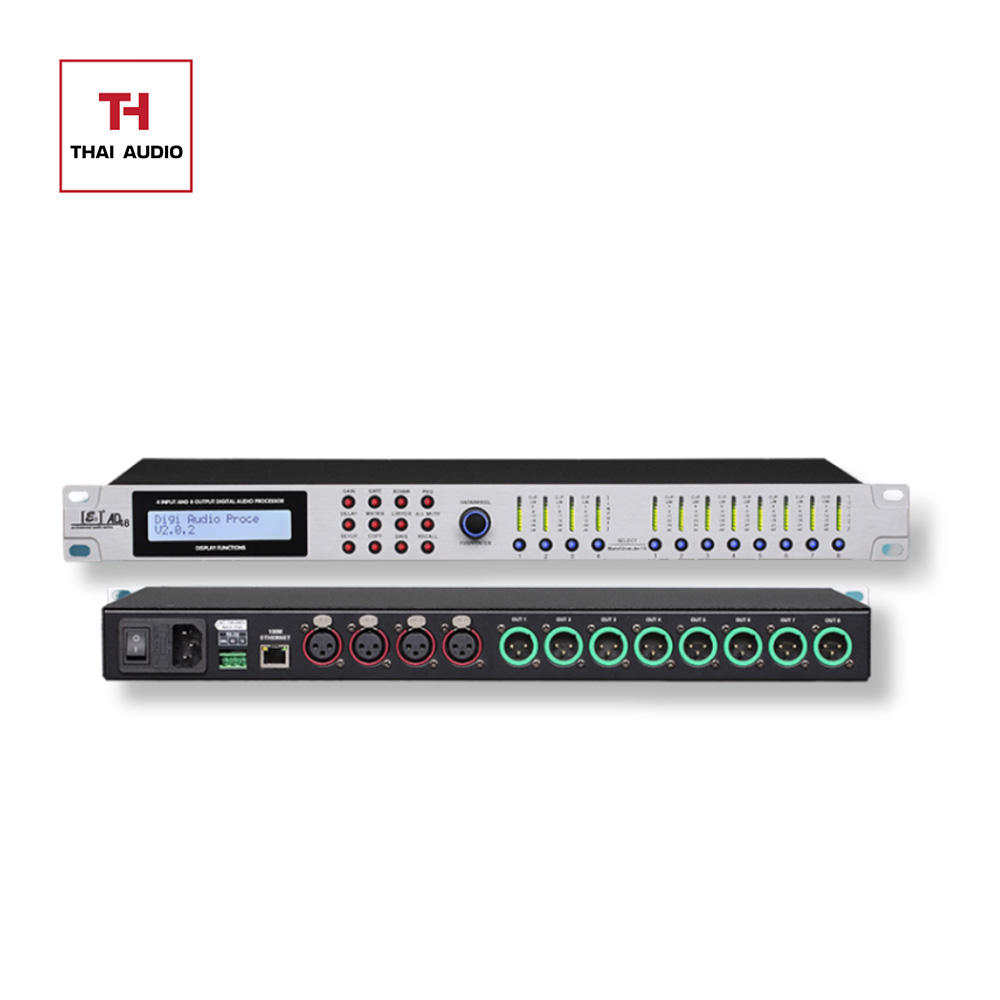

E3 AD-48

Thông số kỹ thuật:

• Max Input Level: 18dBu
• Max Output Level: 18dBu
• Default Output Level: 0dBu
• THD N:
• • <0.003%;1kHz@ 4dBu
  • <0.0035%;1kHz@ 10dBm
  • <0.0035%;20Hz~20kHz@ 4dBu
• Frequency Response: 20Hz-20kHz, /-0.2dB
• In To Out dynamic range: 110dB (Unrecorded right)
• S/N: -110dB (Unrecorded right)
• ADC Dynamic Range: CS5361 114dB
• DAC Dynamic Range: CS4382A 114dB
• DSP: 400Mhzfloating-point SHARC ADSP-21488
• Sampling Frequency: 48K
• QE: 24Bit
• Storage: 32
• Control Mode: 100M Ethernet
• Language: English/Chinese
• Noise Gate: Yes
• Feedback: Yes
• Signal Generator: Yes
• Pressure Limiter: Independent 12 channel
• Delay:
• • Output 1-4 218ms
  • Output 5-8 168ms
• PEQ:
• • Low Shelf : Independent 16-band
  • High Shelf: High Pass/Low Pass
  • Bessel
  • Butterworth
  • Link-Riley
  • Independent 12 channel
  • -6dB/oct
  • -12dB/oct
  • -18dB/oct
  • -24dB/oct
  • -36dB/oct
  • -48dB/oct
